How to connect Couchbase with SharePoint

This "how-to-connect" documentation will explain the initial configuration of an example connection from Couchbase to a SharePoint Online List in Office 365. We will be synchronizing data stored in Couchbase.

This guide presupposes that you have installed the Layer2 Cloud Connector and that you are familiar with its basic functionality. The Layer2 Cloud Connector User Documentation will provide you with all necessary information.

Contents

1. Configuring Couchbase

2. Configuring the Layer2 Cloud Connector

2.1 Creating a new connection

2.2 Configuring the start system

2.3 Configuring the end system

2.4 Running your connection

3. Hints and known issues

3.1 Connection direction

3.2 Data Model

3.3 Batch operations

1. Configuring Couchbase

In order to successfully connect to Couchbase, you will need the following information which should be provided by your Couchbase administrator: Server IP address, the Couchbase User Account Name as well as the password.

2. Configuring the Layer2 Cloud Connector

2.1. Creating a new connection

Create a new connection by using the Create New Connection option in the Actions pane (right-hand side). The new connection will appear at the bottom of the Connection Manager List (left-hand side). Click on your newly created connection to open the connection configuration settings.

Choose a meaningful name for your connection and replace the current "New Connection" Connection Title with it.

Connections to Couchbase can be bi-directional. An initial connection should always be uni-directional to assure that both data entities are identical before switching to bi-directional. Therefore, choose Left to Right as Direction. You can change this setting after your initial synchronisation finished successfully.

2.2. Configuring the start system

We will now set up our Data Entities. Go to the data entity “Data Entity 1” to open the configuration settings.

Choose a Data Entity Title. It is recommended to give your entities meaningful names to maintain an overview when you decide to set up multiple connections.

Select the Data Provider for Couchbase from the data provider list. You can search for Couchbase by typing into the selection box.

For the Connection String, we need the in step 1 mentioned information. You can copy the below connection string and adjust it to match your gathered information. Use the Verify Connection String option to evaluate if the provided connection string is valid.

User=couchbaseuser;Server=Server_IP_address;FlattenArrays=1;

• "User=couchbaseuser;" this property defines the user account that will be used.
• "Server=Server_IP_address;" this property defines which IP address will be connected to.
• "FlattenArrays=1;" this property can be used to flatten the elements of nested arrays into columns of their own. It is an optional parameter that delivers the best results for us if set to 1.

Enter the user account's password into the Password field. The field masks the value for better security.

The Select Statement text box is used to define specific data queries. We will be gathering all top 100 results from our table beer-sample. You can copy the below select statement and adjust it to match your needs. Save your changes by using the right-hand pane option Save Changes.

SELECT TOP 100 * FROM [beer-sample];

To check if all necessary columns are received, you can use the Preview Data option on the right-hand pane which will provide you with a pop-up window showing your sample data from your Couchbase entity.

2.3. Configuring the end system

We are going to send the data to a custom SharePoint Online list. It's required that you set up this list prior to the next steps. Your list should contain matching columns according to your source entity.

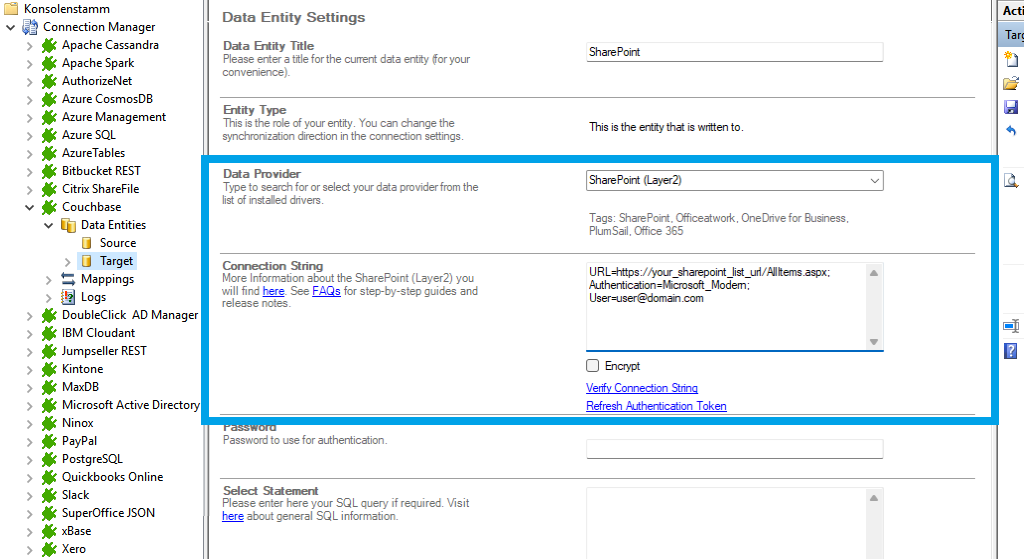

Use the left-hand pane to switch to the data entity "Data Entity 2". We will be using the Layer2 SharePoint Provider for this setup.

For more information about the SharePoint provider visit:

https://www.layer2solutions.com/support/cloud-connector-faqs/layer2-csom-sharepoint-ado-net-provider.

You can copy the below Connection String which contains the minimum of required properties to connect to your custom SharePoint Online list.

URL=https://your_custom_sharepoint_list_url/AllItems.aspx;Authentication=Microsoft_Modern;

• "URL=https://your_custom_shareoint_url/AllItems.aspx;" this property defines the URL of your custom list that will be addressed.
• "Authentication=Microsoft_Modern;" this property will determine the authentication method used. Microsoft_Modern is the default authentication method to access Microsoft Office 365 / SharePoint Online and should work in most cases, even if the SharePoint site is connected to an ADFS. This authentication does not need any further connection string settings, other than the URL of the connected system.

Save your changes by using the right-hand pane option Save Changes.

In the next step, we will configure our mapping settings. Click on the Mappings option on the left-hand pane. If your fields from SharePoint are named identical to the fields from your source system, the Enable Auto Mapping option will match those columns. Disabling this option allows you to match your columns as needed. We enabled auto-mapping in our setup. Save your changes by using the right-hand pane option Save Changes.

2.4. Running your connection

To run your connection, switch back to the main connection configuration node and use the Run Now Button located on the bottom of the setup page. The Run Synchronization Toolbox will also display the synchronization process.

Below is a data preview of the information we have accessed in our source entity:

This will be the result in our SharePoint Online list after our initial successful synchronization:

If you want to use a bi-directional synchronization, you can now switch your connection direction after our first initial synchronization run finished successfully. See section 3 for further information.

3. Hints and known issues

3.1. Connection direction

As far as tested, this connection supports uni-directional as well as bi-directional synchronizations.

After adjusting the direction to bi-directional, you should check your Mappings settings again because some systems might include read-only columns that cannot be mapped directly.

We also recommend to choose a Conflict Resolution that matches your environments needs. You can find out more about the different conflict resolutions in our Layer2 Cloud Connector User Documentation

3.2. Data model

To see all the tables and views you can access with the Couchbase provider, use these queries in the Select Statement:

SELECT * FROM sys_tables

SELECT * FROM sys_views

If there are more tables or views available, you can load them with the option "load more" in the popup window.

3.3. SELECT limit

The provider has a limit of 100 items/query.

3.4. Batch operations

If you try to make multiple operations at the same time, you can get an error that batch operations not allowed. Set the parameter Other=’BatchSize=1’ in your connection string to avoid this error.
